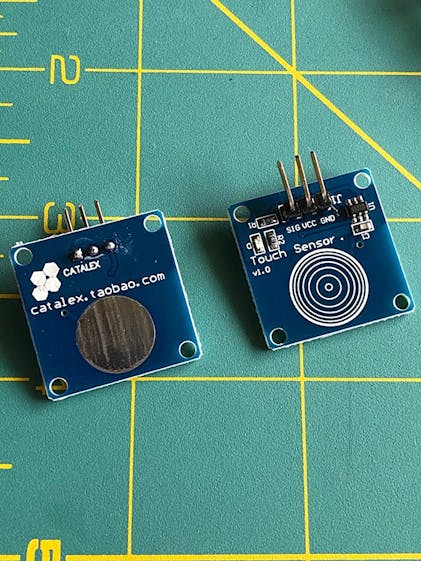

It is suitable for indoor table lamps, LED lighting, DIY car lamp modifications. The sensor has 4 M2 screw positioning holes with a hole diameter of 2.2mm, which is convenient for module installation and positioning, and realizes diversified combinations between modules The front and back of the sensor can be used as a touch surface, replacing the traditional light touch button Johnny Depp is a famous Hollywood actor renowned for his roles of Captain Jack Sparrow in the ‘Pirates of Caribbean’ movies Touch-activated controls: The TTP223B Capacitive Touch Sensor Module can be used to create touch-activated controls for various applications. It enables touch-sensitive... WWZMDiB Sensor táctil capacitivo digital TTP223, módulo de interruptor de botón de bloqueo automático de calibración automática 2.5 ~ 5.5V The sensor touch surface size: 14mm*14mm/0.55in*0.55in; Power supply voltage: 2.0-5.5V, penetration distance: 6mm Product Name: TTP223B Touch Sensor Module Power supply voltage VCC: 2.0~5.5V Output High VOH: 0.8VCC-V Output Low VOL: 0.3V Output Pin Sink Current: 8mA (@VCC=3V, VOL=0.6V) Output Pin Source Current: -4mA (@VCC=3V, VOH=2.4V) Response time: 220mS (low power mode); 60mS (Fast Mode) Size: 24*24*7.2mm/0.94in*0.94in*0.28in Weight: Approx. 2.7g/0.09oz Control interface: a total of 3 pins (GND, VCC, SIG), GND is ground, VCC is power supply, SIG is digital signal output pin; Power indicator: green LED, glow when powered on correctly; Touch area: The inner area of the fingerprint-like icon, which can be triggered by a light touch of the finger. Positioning holes: 4 M2 screw positioning holes, the hole diameter is 2.2mm, so that the module is easy to install and position, and the combination between modules is realized; Product Introduction: The module is a capacitive jog touch switch module based on a touch detection IC (TTP223B). Application: It can control LED modules, light strips and other products. Capacitive Proximity Sensor DAOKAI 20 Pcs TTP223 Touch Button Module Self-Locking Jog Capacitive Touch Key Switch Sensor Module Single Channel For Arduino With Dupont Cable Circuit Diagram
