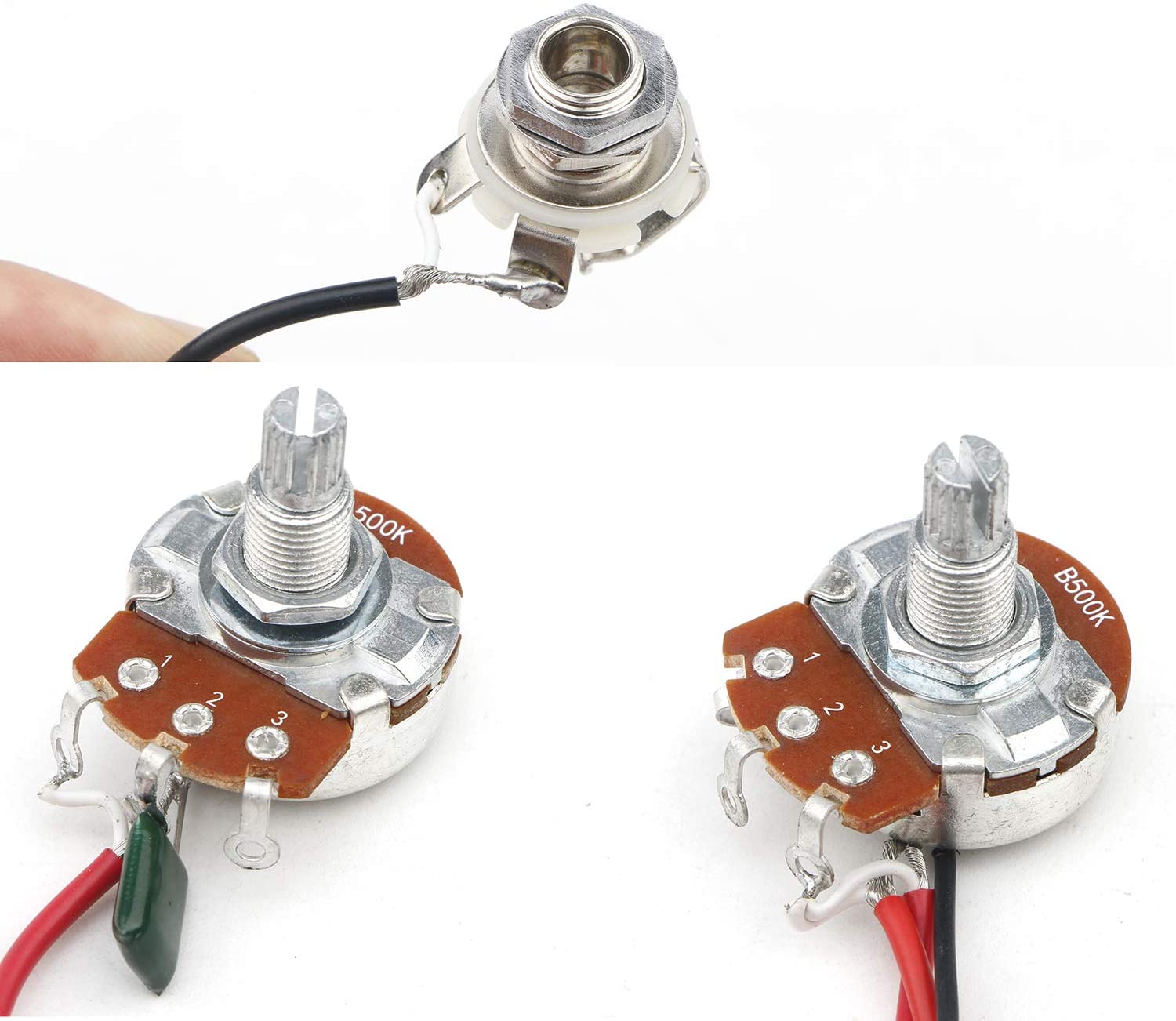

Material: Plastic & metal Switch Cap: Black LP Wiring Harness 2 Volumes / 2 Tones / 3 way switch 2 x A500k, 2 x B500k Pots with 18mm Shafts, Base Dia: 16mm Package Included: 1 x Wiring Harness for Gibson guitars Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Wiring diagram as the picture seventh shown, this harness is completely prewired. This harness is completely prewired, all you need to do is solder your pickups to the switch and ground them to the volume pots Instructions:How to soldered the wire, the 2 B500k potentiometers– (volume pots) both have 3 posts: 1. One B500k Pots: the 'hot' wire of pickup is going to connect the center lug of volume, the ground wire of pickup is going to connect the anywhere on the top of potentiometers . 2. Another B500k Pots: The opposite of connect, the ground wire of pickup is going to connect the center lug of volume, the 'hot' wire of pickup is going to connect the anywhere on the top of potentiometers. Circuit wiring set compatible for LP SG EPI Style electric guitar, Material: Metal and wire, Switch Cap: Black Telecaster Kit Lp Electric Guitar Pickups Wiring Harness Kit 2T2V... - Vicedeal 500k Pots For Guitars All you need to do is solder your pickups to the switch and ground them to the volume pots. Lp Electrc Gutar Pckups Wrng Harness Kt 2T2V 500K Pots 3 Way... In other words, On this harness, solder the 'hot' side of your pickup to the 'wiper' (center lug) of the volume pot...which is the pot that does NOT have a capacitor attached to it. 2 Volume and 2 Tone Knob Pots: Two A500k potentiometer, two B500k potentiometer (Any other problem about product or replacement, please help to contact us, The way to Contact Seller: Find your order -- Contact Seller, then email to us, thanks.) Prewired Guitar Wiring Harness for Gibson with 2V2T Ghana Another way of connect the tone pots, you can also solder the pickup wire into the A500k potentiometers(tone pots) as the above method, hope this will help you. Memphis Tigers Aminco Fan Chain | Tiger Bookstore And you can also choose that the ground wire dose not need to connect. Good luck! Don't forget to tie in your bridge ground wire, which can be soldered to any convenient ground in the circuit!
