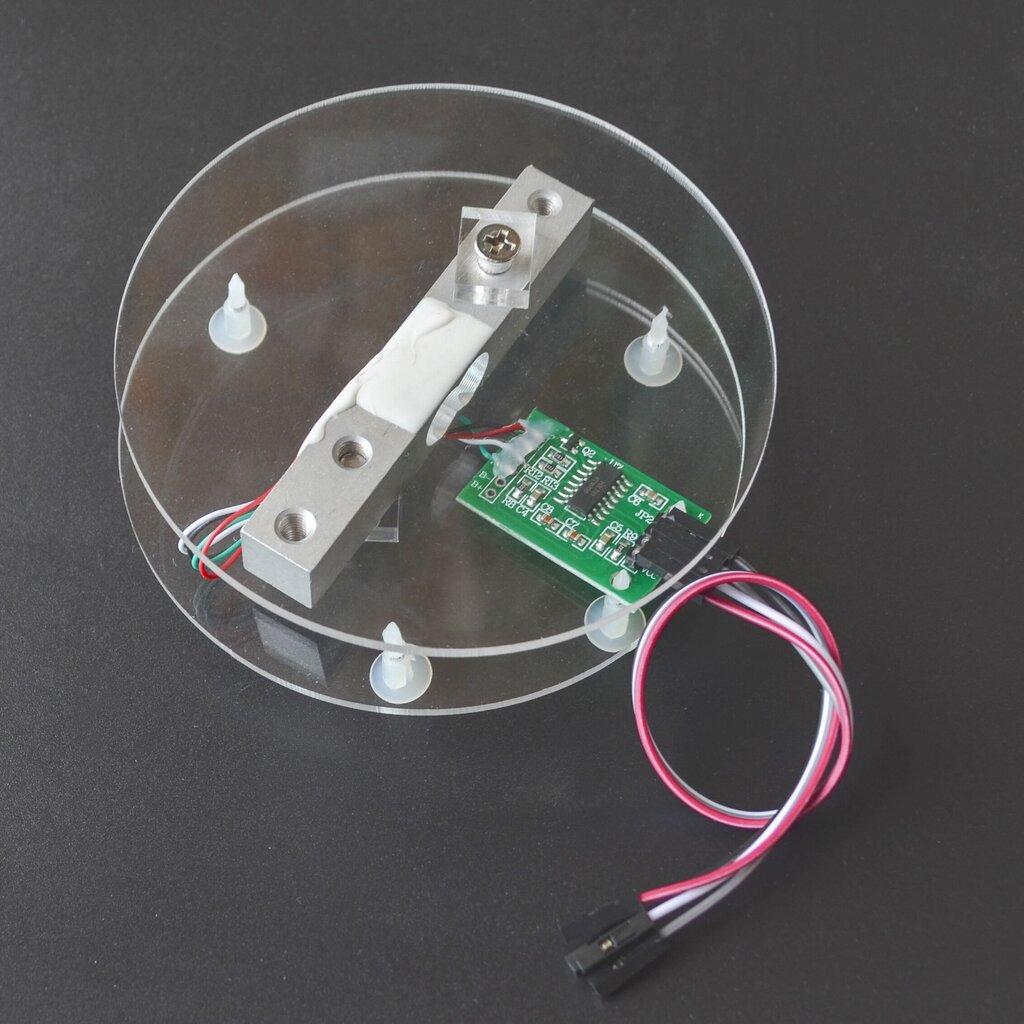

Connect the load cells to the HX711 module, red to E+, black to E-, green to A+, white to A- Please be careful not to directly press the white latex part to avoid damage to the sensor HX711 Module: This is a 24-bit A/D converter chip specially designed for high-precision load cells, with two analog channel inputs and an internal integrated 128 times gain programmable amplifier Operating voltage range: 2.6 ~ 5.5V Operating temperature range: -20 ~ +85℃ The output data rate of 10Hz or 80Hz can be selected; Simultaneously suppress 50Hz and 60Hz power interference; Load cell 5KG： 4 leads, easy to use, It adopts 5-10V driving voltage, and directly outputs the voltage signal due to the change of force. Instructions: One end of the sensor is fixed by a screw hole, and the other end is left in the air. Weight Sensor DAOKAI HX711 ADC Module Kit + Digital Arduino Weight Sensor Application: suitable for human body electronic scales, experimental electronic scales, postal electronic scales, kitchen electronic scales, etc. Connect the load cells to the HX711 module , red to E+, black to E-, green to A+, white to A-. Package includes: You will get 1 x Weight Sensor 5KG , 1 x HX711 24BIT Precision AD Module , 5 x Nylon Guide Column, 2 x Alec Disc, 2 x M3x10 Screws, 1 x 4PIN Female-FeMale Dupont Cables, 1 x 3.5mm x 1.35mm Power Cable, 1 x Scale Display Module On-chip active low noise PGA with selectable gain of 64 and 128. On-chip power supply regulator for load-cell and ADC analog power supply. Apply force in the direction indicated by the label. Package includes: You will get 1 x Weight Sensor 5KG, 1 x HX711 24BIT Precision AD Module, 5 x Nylon Guide Column, 2 x Alec Disc, 2 x M3x10 Screws, 1 x 4PIN Female-FeMale Dupont Cables, 1 x 3.5mm x 1.35mm Power Cable, 1 x Scale Display Module HX711 Weight Sensor Kit Arduino Selectable 10SPS or 80SPS output data rate. Plug in Pendant Light: Hand blown glass, Green Shade Thickened technic. Unique Ribbed pumpkin shape for your kitchen island. modern design and artistic appeal adds vibrant vibe to any room, especially kitchen island, dining room, bedroom Simple digital control and serial interface: pin-driven controls, no programming needed. On-chip oscillator requiring no external component with optional external crystal. On-chip power-on-reset.
