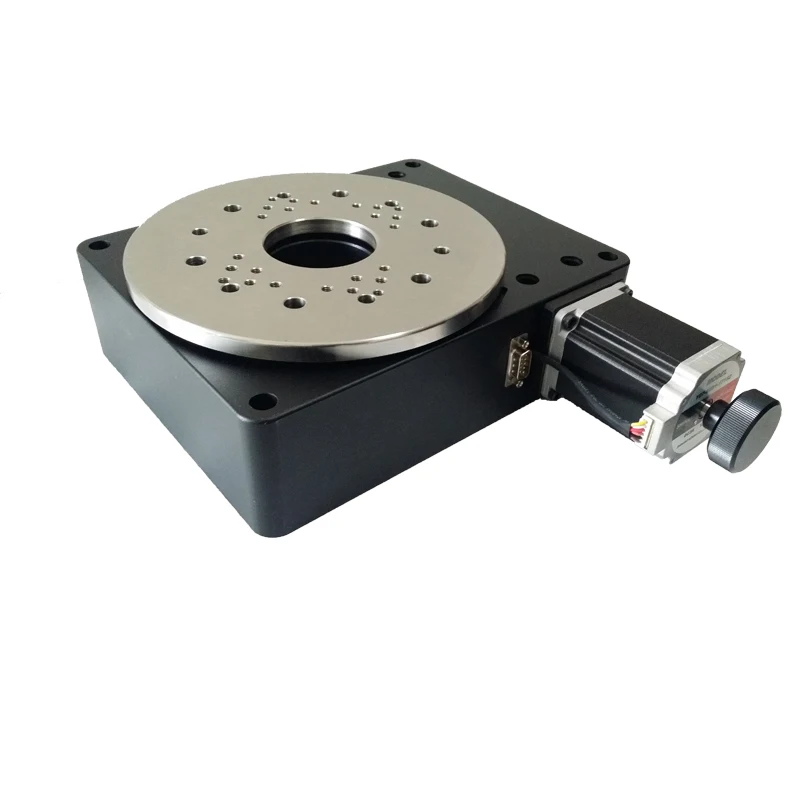

High-precision: The rotating platform is used worm gear, friction resistant material, high precision of rotation precision, outer ring with scale, interface The servo motor can be replaced according to requirements PT-SD205 360°Continuous Rotation Stage,360 Degree Rotation Stage, Angle... Specifications: Product model: HT03RA100 Itinerary : 360° Table size: Φ100mm Transmission mode: worm gear (reduction ratio 1/180) Guide rail: bearing Material: Aluminum Weight: 1.7kg Resolution / Pulse: 0.01 ° (no subdivision) 0.0005° (20 subdivisions) Design resolution: 0.01°, non-MS drive; 0.0005° = 1.8, 20MS drive Rotation speed (maximum): 25° / sec Repeatability: 0.005° = 18 Absolute on-axis accuracy: 0.01° = 36 Top board beat: 15μm Recoil: 0.005° = 18 Eccentricity: 10μm Lost movement: 0.005° = 18 Parallelization: 80μm Load: 45kg Packing size: 23*13*16cm Gross weight: 2kg Package Included: 1X HT03RA100 rotating platform Widely used in industrial automation, the scale ring is installed on the outer ring of the rotary table to facilitate initial positioning and reading. Motoized otation Stage, Motoized otay Stage, Motoized Motion Platform Electric 360?? Rotating Platform Optical Rotation Stage HT03RA100 High-Precision Small Stage Platform The electronically controlled rotary table can be used flat, vertically, and inverted Underworks has designed specific garments for individuals with gynecomastia, providing compression and support to flatten and conceal the chest Standard Stepper Motor and DB9 Interface, choose controller flexibility, so we can provide a fully customized motion system
