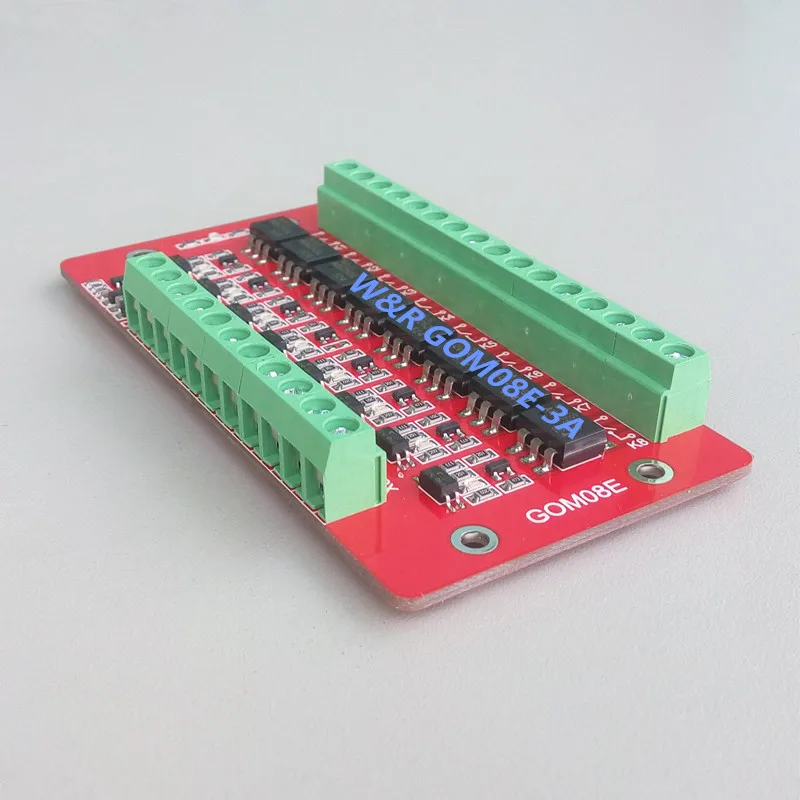

Feature: 1, DC 5-32V wide voltage power supply, with anti-reverse power supply capacity; 2, the output rated load: AC / DC 0-50V / 2A; maximum load: AC / DC 0-60V / 3A (within 100ms); 3, the output port is normally open type of switch contacts, the contact is not charged node, the current direction without requirements; 4, the input control high and low selectable; built-in current limiting resistor, you can directly use the power of the positive or negative control, you can also use the microcontroller I / O port control; 5, the module anti-interference ability, stable performance; trigger current minimum 0.1mA; 6, with power indicator (red) and each way relay status indicator (blue) 7, the use of blue terminals; Precautions: This module can be used directly for signal or resistive load control; If you are using control for inductive loads (eg small motors, solenoid valves, etc. for AirPod Pro Case with Cleaner Kit, Compatible with Airpods Pro 2 Case Cover 1st/2nd Generation with Lock && Keychain, Full Body Shockproof Protective Case (2023/2022/2019 Please download the user manual from the User Manual link on this page or contact us. Output Rated load: AC / DC 0-50V / 2A; Maximum load: AC / DC 0-60V / 3A (within 100ms); Buy 2 Channel Relay Module with Optocoupler Isolation High Low Level... Voltage Sensing Relay 5V 1-Channel Optocoupler Relay Module For Arduino H/L Level Triger Solid State Relay ), keep more than 3 times the remaining amount and add freewheeling diodes at both ends of the inductive load. 5V 30A 2-channel relay module AlzQUCOyZQhKgXU0PzDptISGtyfu?e=Ak6lUE 4, X1-X2: Trigger side, you can choose high or low trigger, trigger current only 0.1mA; Select the high-level trigger: 3-32V for the effective high level voltage; Select the low-level trigger: 0-2V for the effective low voltage; Relay output: 1, NO1-NO2: relay normally open interface; 2, C0M1-COM2: relay common interface; Package Included: 1*LM YN 2-Channel Solid State Relay Module If you for any reason are not happy with any product supplied , please do not hesitate to contact us and we will do our best to solve your problem . LM YN 2-Channel Solid State Relay Module, with solid-state relay output resistance is very small features, can replace the mechanical relay contacts, but also has a small control current, fast action time, long working life and other characteristics, can be widely used in a variety of power Or signal control cases. Module interface Module Control: 1, DC +: Connect the DC power supply positive 2, DC -: Connec the DC power supply negative 3, XM : trigger side of the public port (through this interface can choose high or low trigger).
