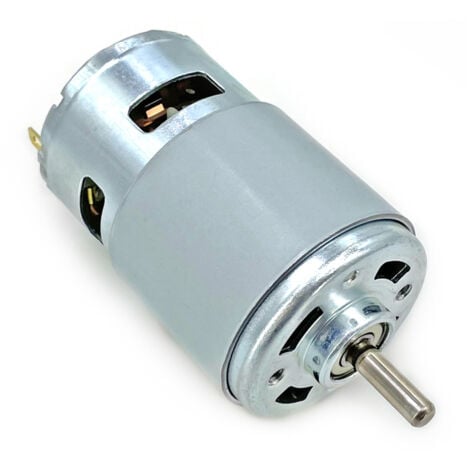

WS Silicone Lube Station for Custom Mechanical Keyboard Switches Orange 12V 775 DC Motor w/ High Speed & Big Torque - 4000 RPM - RobotShop ☞ The following are the measured parameters of the motor for reference: Rated voltage: 12V ~ 24V Rated current: 4A, 10A, 12A (recommended starting current 10A) Rated speed: about 12V/24V----10000RPM/20000RPM Motor step height: 4.5mm Motor step diameter: 17.5mm Shaft length: 16mm (shaft length above step level) Shaft diameter: 5mm shaft Motor diameter: 42mm Motor length: 66.5mm Step height of motor tail: about 7mm Length of shaft out of motor tail: about 4.5mm Mounting hole pitch: about 29mm Mounting hole diameter: M4 screw Motor weight: about 700g(2 x 775 Motor --2x Motor bracket) ☞ Package included： 2 x 775 Motor 2x Motor bracket 4x Fixing screw ☞ Notes: 1. Manual measuring, please allow 1 ~ 3mm error,thank you. 2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Large Torque Hgh Speed Power Motor 775 12V-24V DC 3000-12000RPM RC... ☞ Select high-quality raw materials, good gloss, simple and generous We guarantee the style is the same as shown in the picture. ☞ This motor is adopted of pure copper wire coil, with low heat and low loss 12v Dc Motor Bearing 775/895 DC Otor DC 12V-24V 3500--12000 RP Ball Bearing Large Electric Motors
