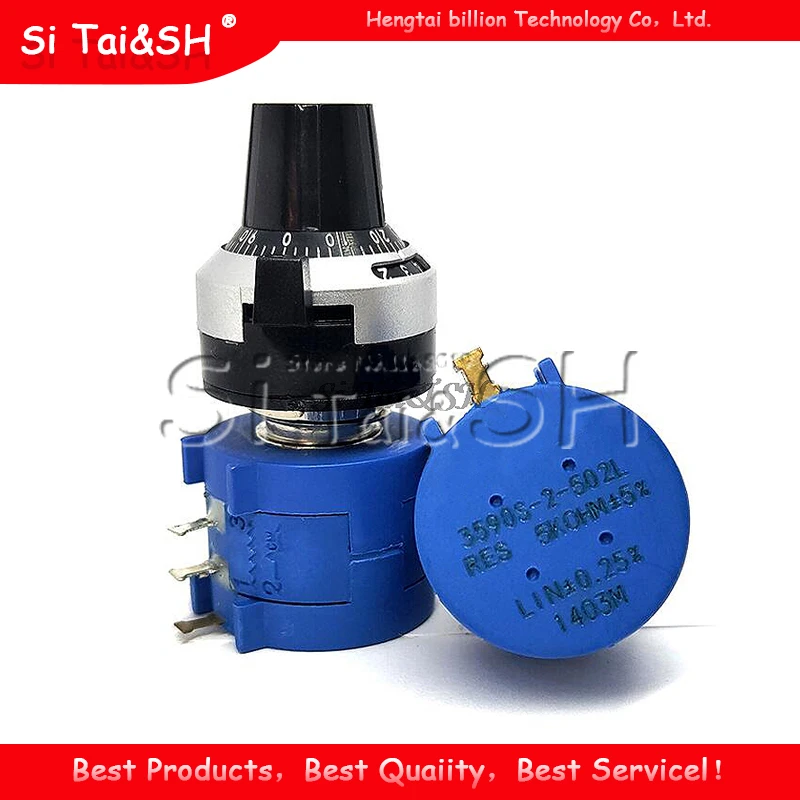

Specifications: Model: 3590S-2-103L Resistance: 10KΩ Resistance Tolerance: ±5% Independent linearity: ±0.25% Terminal Resistance: less than 0.2% Noise: less than 3% Insulation Resistance: 1GΩ Withstand Voltage: 710V Effective Electrical Travel: more than 3600 degrees Total Machanical Travel: 3600±10 degrees Mechanical Endurance: more than 10000 cycles Shaft Diameter: 6.35 x 10mm/ 0. 25 x 0. 4(D*L) Threaded Diameter: 9mm/ 0.35 Body Size(No Include Shaft) : 22 x 19mm/ 0.9 x 0.7 (D*H) Total Length: 42mm / 1.65 Operating Temperature: -55℃~125℃ Package Content: 5PCS 10K 3590S 10K Potentiometer 5PCS Knob Cap Product Name: 3590S Multiturn Wire Wound Rotary Potentiometer; Resistance value: 10K Ohm. Buy 3590S 10K Multiturn Adjustable Potentiometer kit Wirewound Resistor 2W 3590S-2-103L 500 1K 2K 5K 20K 50K 100K ohm + knob cap at for... A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to digital output signals. Mechanical Angle :3600°; Resistance Tolerance: ±5%; Independent linearity: ±0.25%. Shaft diameter: 6.35mm; Standard shaft length: 20mm; Body Size(No Include Shaft) : 22 x 19mm/ 0.9 x 0.7 (D*H). DaFuRui 4pcs 3590S-2-103L 10K ohm Rotary Potentiometer 10-Turn Wire With Knob 3590 Multiturn Wire Wound Potentiometer Lead Free - Trimming 10k Potentiometer Adjust the resistance by rotating the shaft, and the product is equipped with a knob for better use. We offe J11 6P4C and J12 6P6C modula cables in staight though and evese wiing options. Available in vaious lengths fo you telephone, modem, o fax machine connections The rotary potentiometer has the advantages of high accuracy, good stability, low temperature coefficient, reliable contact, high temperature resistance and strong power load capacity.
