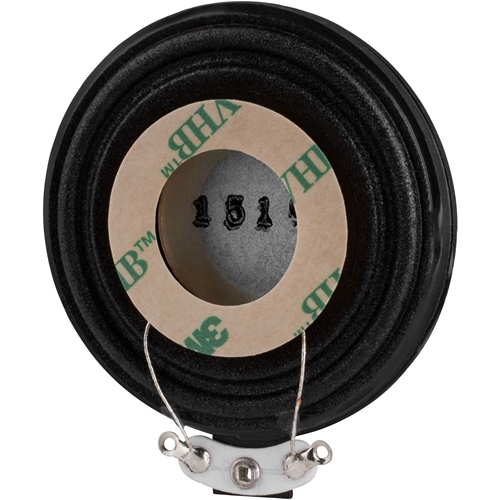

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Product Details Speaker Series Exciters Model Number DAEX25FHE-4 List Price $10.99 Color Silver Unit of Measure Each UPC 848791000980 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 0.25 Speaker Type Exciter Power Handling (RMS) 24 watts Power Handling (max) -- Continuous Program Power -- Impedance 4 ohms Sensitivity -- Frequency Response -- Voice Coil Diameter 25 mm Magnet Weight -- DC Resistance (Re) 4.3 ohms Voice Coil Inductance (Le) 0.10 mH @ 1 kHz Resonant Frequency (Fs) 224 Hz Mechanical Q (Qms) -- Electromagnetic Q (Qes) -- Total Q (Qts) 0.78 Diaphragm Mass Inc. Airload (Mms) 1.61 g Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of Suspension (Cms) 0.0003 mm/N Surface Area Of Cone (Sd) -- Volume of Displacement (Vd) -- BL Product (BL) 3.63 Tm Compliance Equivalent Volume (Vas) -- Maximum Linear Excursion (Xmax) -- Drivers Mechanical Losses (Rms) -- Entry / Exit Diameter -- Surround Material -- Voice Coil Wire Material -- Voice Coil Former -- Basket/Frame Material -- Magnet Material -- Overall Outside Diameter 50.5 mm dia. Overall Depth 20.5 mm Baffle Cutout Diameter -- Mounting Hole Diameter -- Bolt Circle Diameter -- Product Weight -- Quick Overview Choose Dayton Audios DAEX25FHE-4 sound exciter to add dynamic sound to almost any object or surface! For permanent inverted mounting (or when mounting on moving surfaces), four screw tabs are also provided to support the weight of the exciter. Speaker Exciter 40w Dayton Audio EX25VT2-4 IMS? Vented 25mm Interchangeable Hardware Mount Exciter 2 2 Inch Speaker Small size; just under 2 diameter, about 7/8 high Dayton Audio DAEX25FHE-4 Framed High Efficiency 25mm Exciter 24W 4 Ohm Dayton Audio's 25 mm DAEX25FHE-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors... This exciters small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! Thinner, smaller materials will tend to be louder and create a mid/tweeter response. International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions. 4 OHM EXCITER The 1 voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. Find many great new & used options and get the best deals for Apex Reactor XL Quiver Black 5 Arrow AG240B at the best online prices at ! Free shipping for many products In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters.
