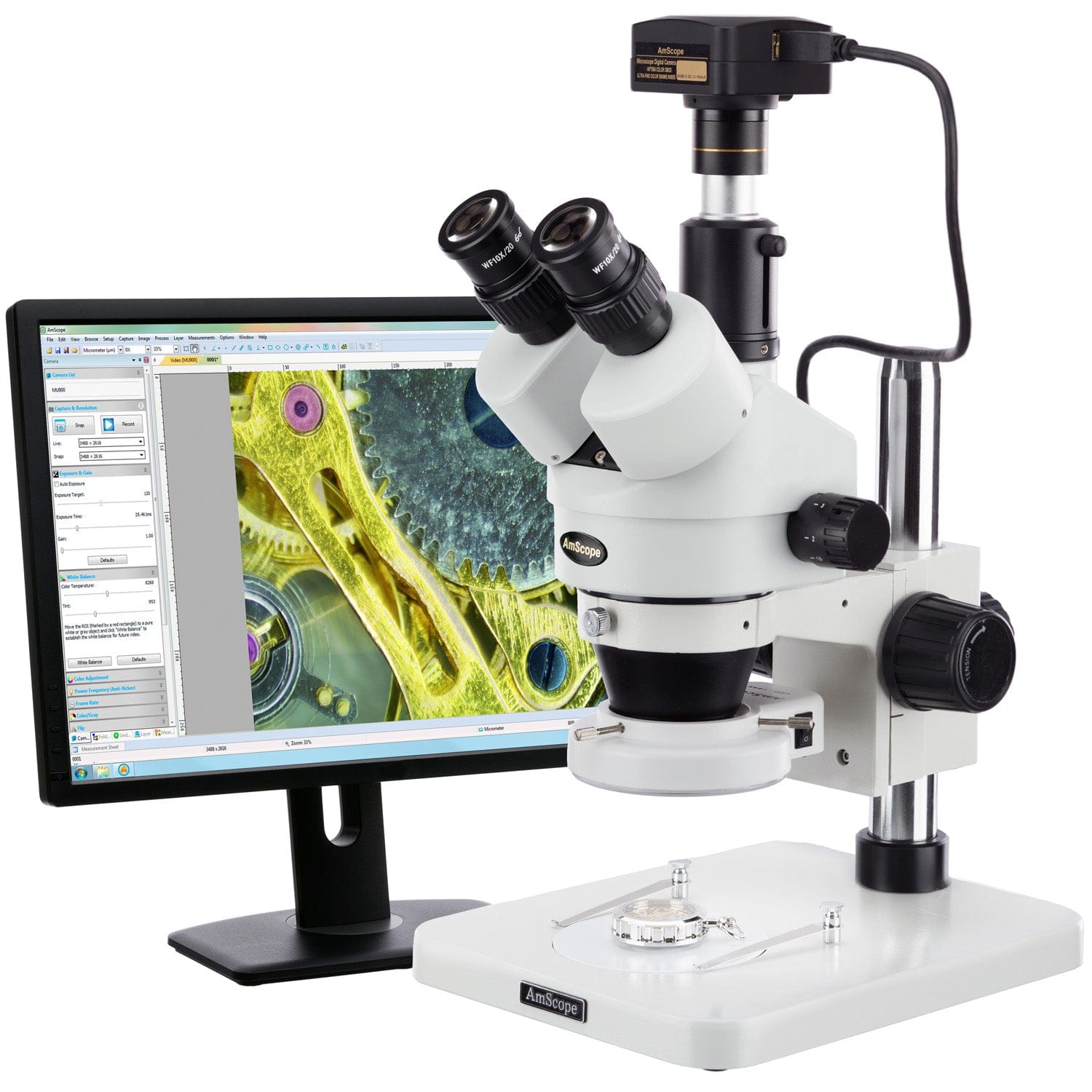

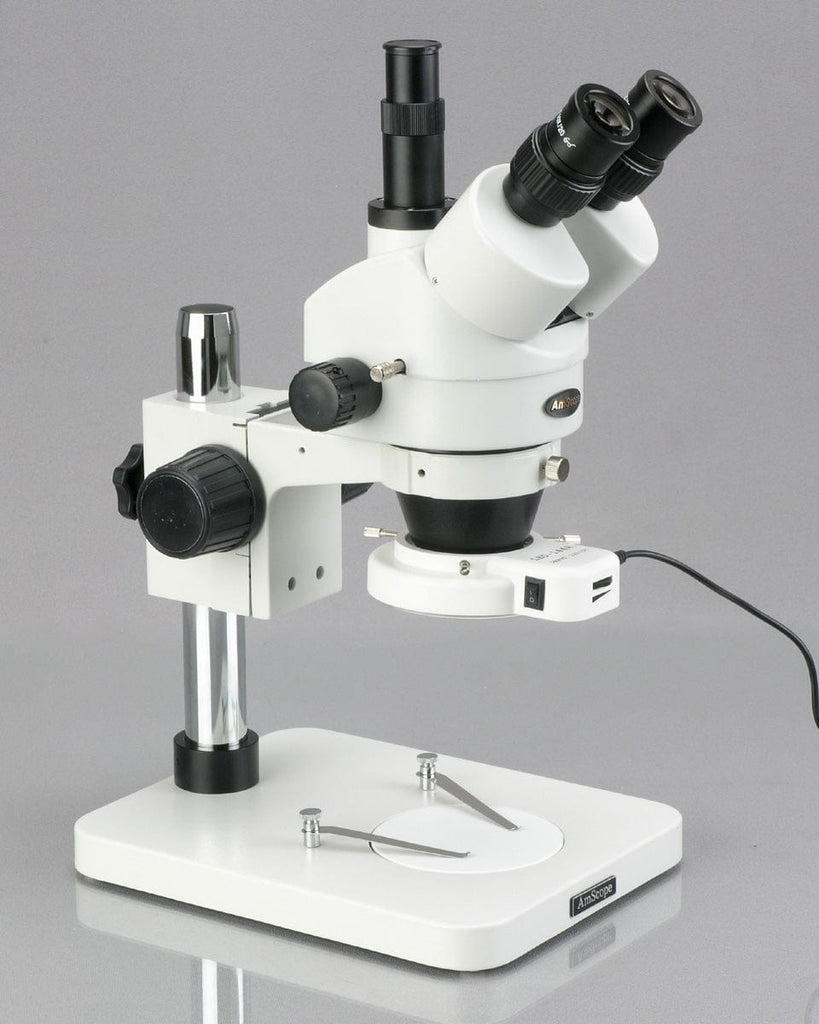

The microscope provides up to 6.5 (165mm) of working distance. Double-arm Boom-Stand The multi-pivoting, double-arm stand provides a stable, flexible support system, ideal for hands-on work. Optics The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. Fits: for 2008-2010 Ford Super Duty F250/F350 F-250/F-350(Excludes Dually Model). Package Included: 1 x Set of 4 pieces fender flare (2 for front and 2 for rear The SM-4T is a heavy-duty, highly-flexible microscope designed for biological and industrial applications. Specifications Microscope Head Head Type Trinocular, 45° incline, 360° rotatable Optical System Greenough stereoscopic Interpupillary Adjustment Compensation-free gemel, 54-76mm Ocular-port Diameter 30mm Dioptric Adjustment Both oculars, ±5dp Eyepieces 10X, 20X Photo Port height-adjustable 23mm tube, SM series Objective Lenses 0.7X-4.5X zoom Objective Numerical Aperture 0.065 @ 4.5X0.02 @ 0.7X Objective Resolution 195 lp/mm @ 4.5X60 lp/mm @ 0.7X Native Field-of-View 4.4mm-28.6mm Native Working Distance 100mm Auxiliary Lens Mount 48mm thread Auxiliary (Barlow) Lenses Included 0.5X, 165mm working distance2X, 30mm working distance Stand Stand Type Double-arm boom-stand with ball-bearing movement, cast-steel base Stand Dimensions 20 double-arm (overall length: 30), 17 high pillar, 10-1/4x8-1/4x2 Focusing-block Focus Range 50mm Camera Specifications Sensor Type CMOS Sensor Optical Format 1/2.3 Active Pixels 10.6M (3854 x 2748) Pixel Size 1.67µm x 1.67µm Active Sensor Area 5.99mm x 4.59mm Shutter electronic rolling shutter Sensitivity 0.31V/Lux-sec Spectral Response 380-650nm with IR-cut filter Capture Resolution and Maximum Framerate 1.9fps @ 3584x27488fps @ 1744x130827fps @ 872x654 Connectivity USB 2.0 Lens-mount C-mount Compensating Lens 0.5X Power 5VDC over USB Software OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Hardware Requirements Intel Core2 2.8GHz or comparable processor, 4GB RAM Features Windows Version Live video preview Captures still images and video Time-lapse capture Exposure and white-balance controls Dark-field correction Digital binning Image processing Measurement tools, including lines, arcs, polygons Segmentation and counting tools Image-stitching, extended depth-of-field, HDR Fluorescence color-mapping Mac/Linux Versions Live video preview Captures still images and video Exposure control Color adjustment Measurement tools, including lines, arcs, polygons Packing List: One trinocular stereo microscope head A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. One USB Type B to USB type A cable One software CD One LED ring-light One power controller One power cable One double-arm boom-stand with focusing rack The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. You can cast light from the top, bottom, or either side in order to bring out the necessary topological details. Digital Imaging Monitor and capture photos and videos with the included 10.0MP USB2.0 camera. PA 5FZ IFR07 10N Simul Focal Trinocular Zoom Stereo Microscope 0.7X Whether used as the sole light-source or in combination with additional illuminators, the ring-light produces a crucial light pattern for virtually any application. Compound Microscope AmScope 3.5X-180X Trinocular Stereo Zoom Microscope Stereo Microscope With its wide zoom range and double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab. This lightweight illuminator mounts to the microscope’s objective housing, and projects a smooth, encompassing field of light over objects, eliminating most shadows. The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images. 3.5X-90X Zoom Stereo Microscope w 10MP Camera + 144-LED 4-Zone Light... Use of a drop-down column allows the head to be positioned at virtually any angle. 10X and 20X eyepieces are included, as well as 0.5X and 2X Barlow lenses to provide an expanded magnification range from 3.5X-180X, with high-eyepoint optics to accommodate glasses or goggles. Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity. One ring-light mounting adapter 3.5X-180X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses.
