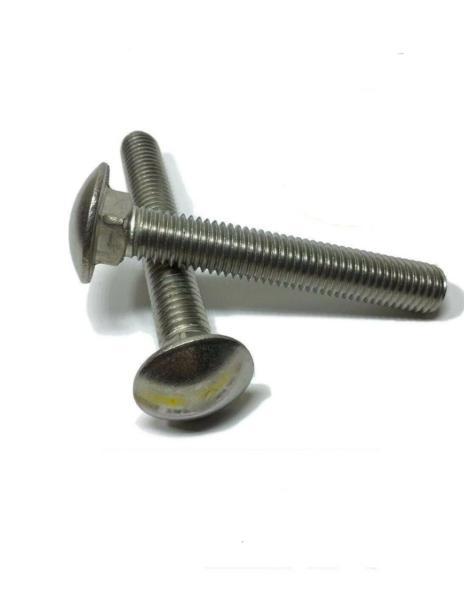

Common Applications Carriage bolts are commonly used for fastening wood beams and panels to masonry or to one another. Carriage Bolts - Zinc Plated Steel 307A Zinc Plated Steel 307A Zinc plating offers an extra layer of corrosion resistance and a shiny finish to class 4.6 steel Carriage Bolts - Zinc Plated Steel Fully threaded down to the square section beneath the head which grips into the part being fixed (typically wood) Domed Head Carriage bolts feature a domed, driver-less head with a short square section under the head of the bolt, preventing the bolt from turning when the nut is tightened. Thread Direction: Right Hand Lace trim faux leather skirt | F13573 | NISSA DESCRIPTION Carriage bolts have a domed head, and the shank is topped by a short square section under the head of the bolt. The square section grips into the part being fixed, preventing the bolt from turning when the nut is tightened. Sizing: Diameter - Thread Pitch x Overall Length Product Specifications Material: 307A Zinc Plated Steel Head Style: Dome Filet Radius: 0.031 Head Diameter: Max 0.469 - Min 0.436 Head Height: Max 0.114 - Min 0.094 We will respond with the requested information quickly. Square Neck Width: Max 0.199 - Min 0.185 Thread Diameter: #10 Thread Size: #10-24 Thread Type: UNC Coarse Standards met: REACH and RoHS Compliant A carriage bolt has a domed or countersunk head and the shank is topped by a short square section under the head of the bolt. Carriage Bolts Coarse Thread #10-24 x 1-3/4 in ASTM A307 Grade A Steel Zinc Clear. ... 190 in. Bolt Material Grade: Grade A. Specification: ASTM A307. Body... 10-24 x 1/2 Zinc Plated Slotted Round Head Machine Screw | K.L. Jack If in doubt, please ask a question through chat or email. The square shank of the bolt allows it to lock into place when inserted into a round hole in wood or a square hole in a metal strap, and the unthreaded square shank pulls into the wood, creating a tight connection. Please refer to the description for fastener details. Bolts Over 6 in length will have a shoulder beneath the head. Commonly used with hex nuts, flat washers, and wood applications Bulk 3/4"-10 Carriage Bolts A307 Grade A Coarse HDG 100 Qty - 3/4"-10 X 2-1/2 Listing photo is generic for the fastener type listed in this listing and is not to scale.
