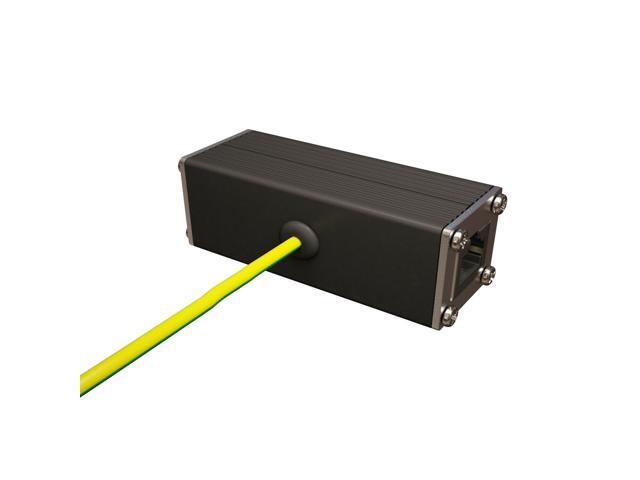

Mounting flange on the both sides of lightning suppressor allows easy mounting to a wall, network panel, cabinet, or rack attaching by screws (not included). TP302 supports PoE++, also known as High Poe (IEEE 802.3bt standard), and allows a maximum PoE current of 154W/48V when used on all 4 pairs. Provide transient protection for the protected differential line pair to IEEE 802.3 af/at/bt (PoE++ 15V/24V/30V/48V/50V/56V Transmission) Mode A and B IEC 61000-4-5 (Lightning/Surge) 20KA (8/20μs) with PoE current of 1.6A / 2 pairs and 3.2A / 4 pairs (154W/48V max). The lightning protector PoE supports both Mode A (Pins 1,2+ 3,6-) and B (7,8+ 4,5-) of the 802.3af standard. 802.3af (PoE) can deliver up to 15.4 watts per port with 12.95W at the powered device, while 802.3at (PoE+) can deliver up to 30 watts with 25.5 watts available to devices. Once the surge protector ethernet voltage exceeds its designed rating it “begins to clamp” and starts to conduct energy directly to the electrical grounding system. Despite the primary protection (a direct strike to a line), the thunder arrestor also offers secondary protection, which will arrest EMF induced surges (nearby lightning ethernet). Mua Ethernet Surge Protector Gigabit PoE++ (154W/3.2A) Mounting Flange... Gas discharge tubes (GDTs) are developed to overcome some of the disadvantages of diode-based protectors like energy handling capability and is suitable for almost all surge, whether high or low frequency, it can be intercepted by a gas discharge tube surge arrester so it provides a rigorous spark discharge control performance. POE Surge Protector allows a single RJ-45 cable to provide both data connection and electric power to device such as wireless access point, IP and security camera, VoIP phone, computer and others. To protect devices on both sides, it is recommended to have one of the surge protectors on each end of the RJ45 cable in the network topology. Ethernet Surge Protector for Gigabit GbE PoE/High PoE++ (HPoE) 1000 Mbps LAN Ethernet Network Installation The Ethernet lightning arrestor must be properly grounded to work. Outdoor Ethernet Cable Tupavco Outdoor Ethernet Surge Protector PoE+ Gigabit - Gas Discharge Weboost Lightning Surge Protector It ensures the safety of a wide array of valuable components such as switch, router, modem, bridge, repeater, or any part of internet service network. Ethernet Surge Protector - PoE+ Gigabit - (with DIN | Ubuy Philippines RJ45 Lightning Protection for Gigabit 10/100/1000 (GbE) and High PoE++ Networks The gigabit surge protector data rate of Gigabit 10/100/1000 (GbE) transfer supports an ultra-fast maximum data rate of 1 Gigabit per second (Gbps - 1000 Mbps) and does not affect the speed performance in the local area network. As it is not known where the transient will happen, having both modes protected ensures damage is minimized. Protection Modes Line-Line, Line-Ground The Line-to-Line ethernet surge protection mode helps protect against short circuits between different nodes of the network system while the Line-to-Ground mode protects against short circuits between the network node and the earth. In most cases, a ground busbar on an electrical panel or network rack cabinet is already grounded and is typically the easiest way to ground the wire. Specifications Multidirectional Ethernet network surge protector works in both directions (IN/OUT), so the source input signal cable can be connected to any side. Ethernet Surge Suppressor TP302 use a Gas Discharge Tube (GDT) on all 4 pairs (8 wires). The arrester is housed in a cast aluminum enclosure. PoE Mode Support Mode A and B for Power Tested standards IEC 61643-21, IEC61000-4-5 Nominal Discharge Current of 20KA defines the peak value of the current that can be passed through the SPD having a waveshape of 8/20μs microsecond where the RJ45 lightning arrestor remains functional after 15 surges. Aluminum Case,Ground Wire 12AWG,Line-Line Line-Ground Protection,Bidirectional Clamping,20KA 8/20μs The lightning arrestor can be used with unshielded twisted pair (UTP) or shielded (STP) cables. Surge Arrestor TP302 is designed to protect PSE (power-supply equipment) connected to a network from transient overvoltages. A bidirectional clamping on CAT5 surge protector allows levels above and below the reference voltage by clamping the voltage that can cause damage. Nominal Discharge Current (8/20μs): 20 KA Mounting Flanges provide option for screw mount to the Wall, Electric Panel or Network Rack Cabinet Ethernet Surge Protector is a surge protection device (SPD) that is inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage of electronic networking equipment. Powerful surges that the device protects against include direct lightning strikes, voltage spikes, or PoE overvoltages. Outside Dimensions (W*L*H) 26*26*70 mm Weight: 60 g AS804F digitale noise meter handheld noise decibel... – Grandado
